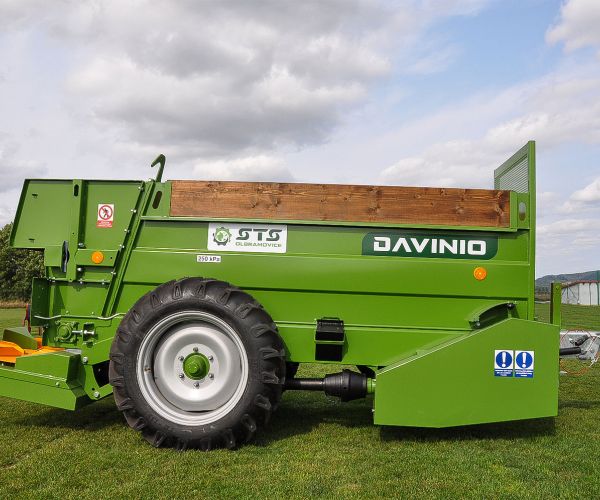

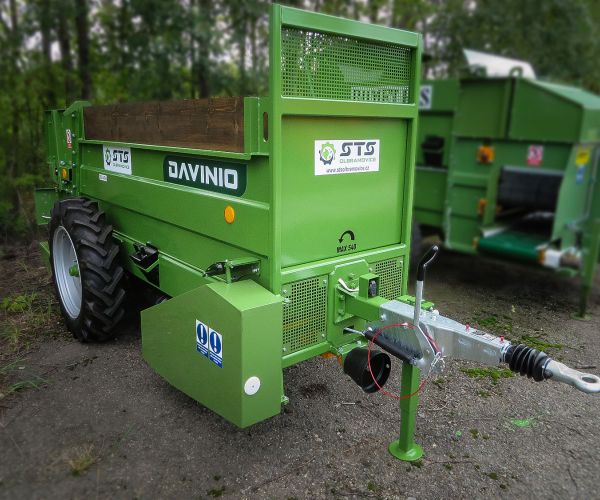

DAVINIO

DAVINIO

Organic fertilizers spreader

Thanks to its small dimensions, the DAVINIO spreader is intended for application of manure, compost, peat or limestone in particular in vineyards, orchards or hop fields. It is of use also in small operation units, e.g. spreading of pellets when bedding the halls for poultry breeding.

The basic variant of DAVINIO’s loading platform is 2m3 and working width 1.5m. Material is fed to the spreading mechanisms via the floor conveyor of which speed can be easily controlled. All mechanical drives of the spreader are driven by the power take-off. The semitrailer has driving-in brake installed. The spreader meets the technical conditions for road safety.

DAVINIO may be ordered in various options as needed and requirements of the customer. The semitrailer may be delivered with higher loading platform of 3m3. Hydraulic motor may be also used to drive the mechanical drives. Accessories may be selected to adjust the working width to either increasing to 3–5m (depending on the material used) or transporting directly to the lines thanks to a lateral belt conveyor, which may be mechanically expanded and setting up of exact location of the material being spread to the lines to trunks of trees in orchards or vineyards can be made conveniently.

Connection behind smaller tractors used right in the vineyards and orchards is of course possible as well.

Technical specifications

DAVINIO

Typ DAVINIO DAVINIO s adaptérem DAVINIO s nástavbou DAVINIO s nástavbou a adaptérem
Pohotovostní hmotnost (kg) 1150 1330 1330 1510
Užitečná hmotnost (kg) 1850 1670 1670 1490
Celková hmotnost (kg) 3000 3000 3000 3000
Výška (mm) 2018 2018 2200 2200
Délka (mm) 4494 4800 4544 4800
Šířka (mm) 1590 1590 1590 1590
Světlá výška (mm) 275 231 275 231
Průjezdnost nápravy (mm) 1590 1590 1590 1590
Rozchod kol (mm) 1295 1295 1295 1295
Objem korby (m3) 2 2 3 3
Pneu 11.2-24 11.2-24 11.2-24 11.2-24
Brzda provozní nájezdová nájezdová nájezdová nájezdová
Brzda parkovací mechanická mechanická mechanická mechanická
Max. povolená rychlost (km/h) 20 20 20 20
Napětí el. instalace (V) 12 12 12 12
Max. otáčky náhonu (U/min) 540 540 540 540
Požadovaný výkon traktoru (kW) 20 20 20 20
