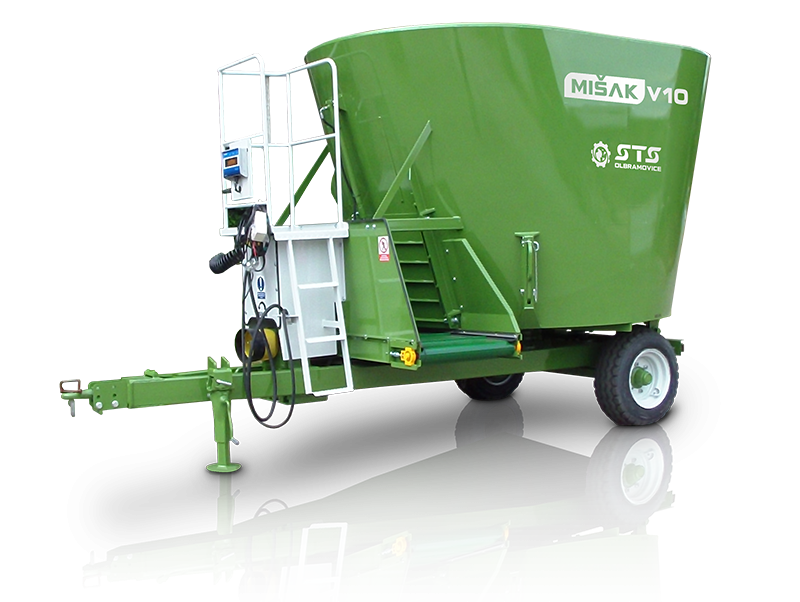

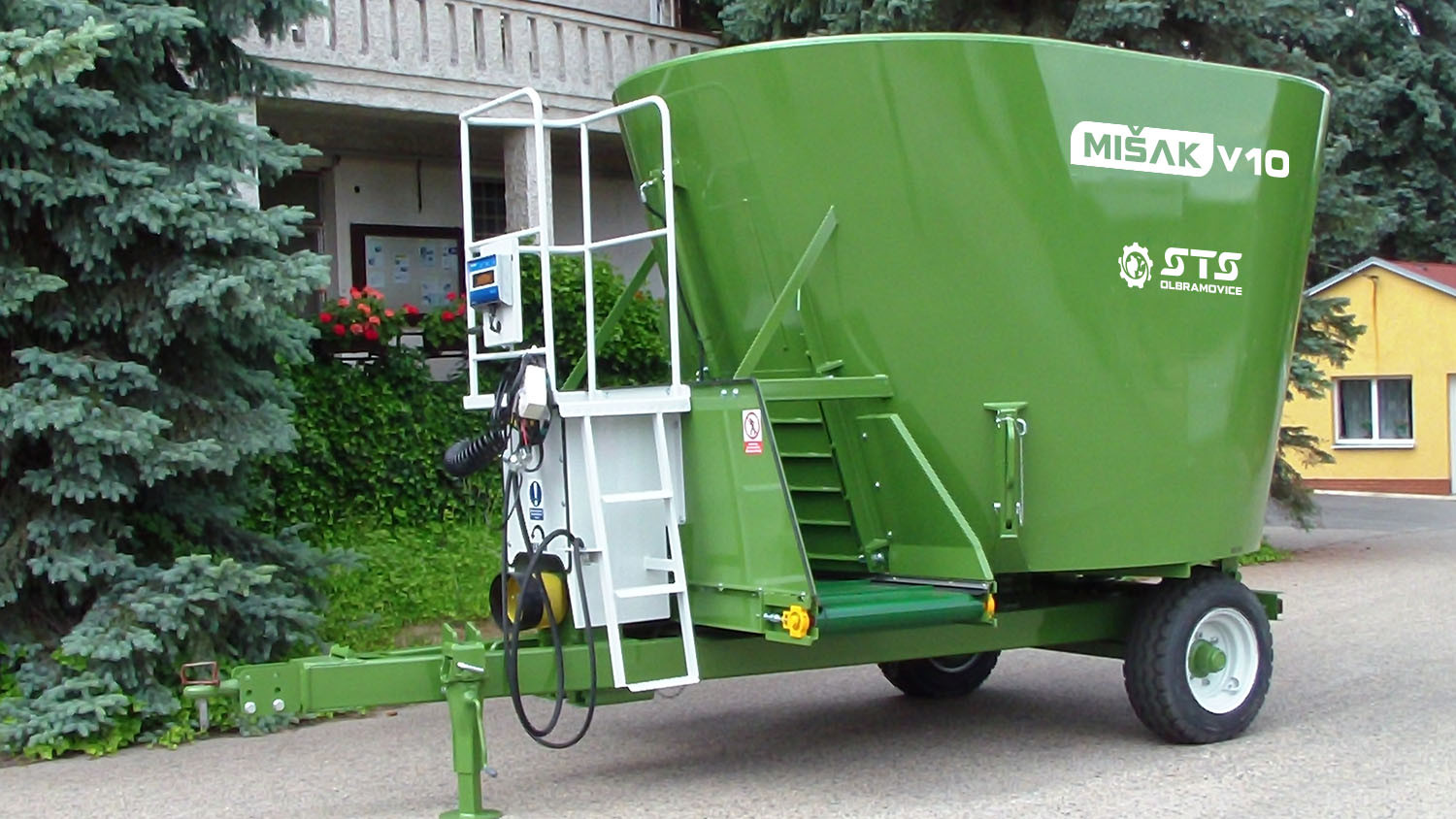

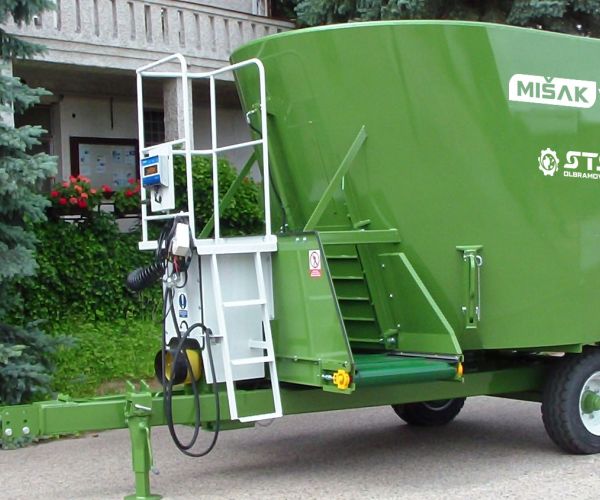

MISAK V

Vertical mixing feed trailer

The MISAK V series of trailers has been designed for the preparation of mixed feed batches from bulk, baled, crushed, cut, or liquid feed for livestock. Also classical feed mixtures can be mixed with a combination of vitamins, minerals or enzymes, etc. In this way, MISAK V provides farmers with a convenient way to influence the structure and composition of feed so as to increase the quality of the feed mixture dose. This improvement in quality will consequently be reflected in milk yield, gain, productivity and cattle health.

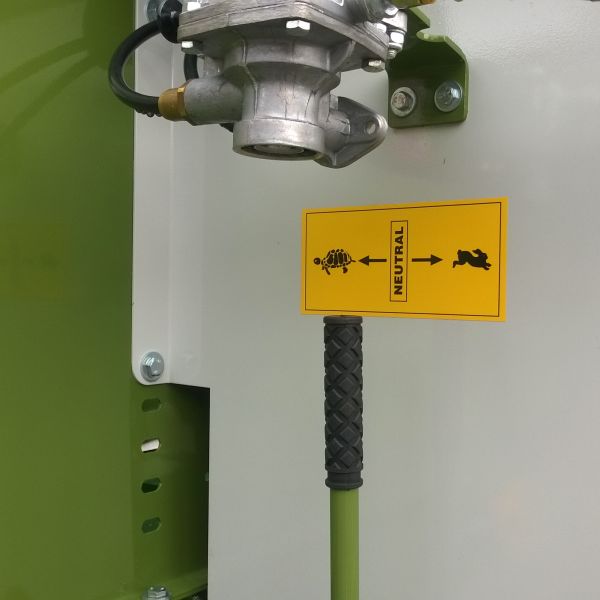

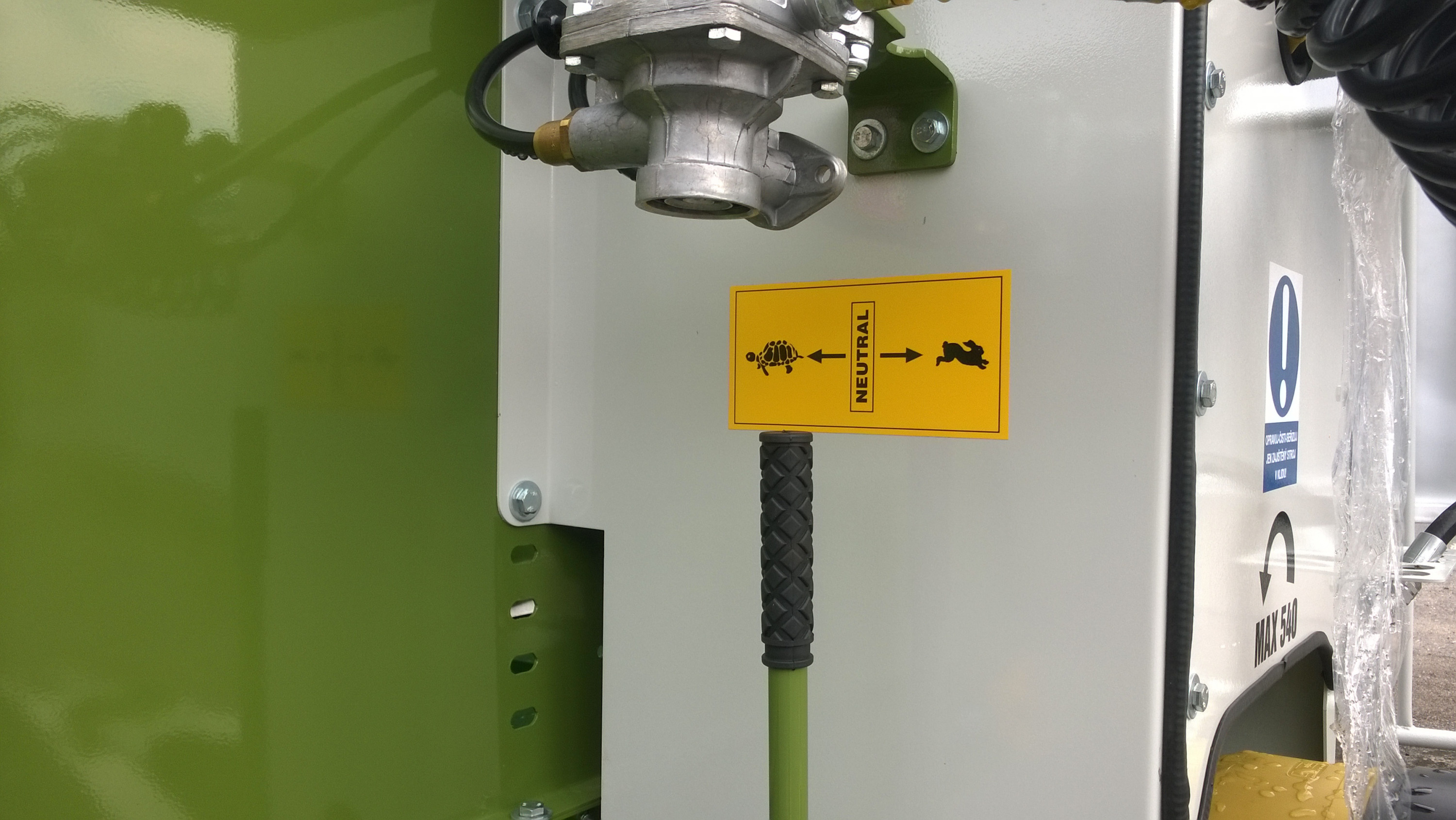

Low costs of operation are ensured by selecting high-quality components, such as a high-precision gearbox that requires a low torque or two-stage additional gearbox, which allows for precise oscillation of the screws. Also the precisely selected size of the screw adapted to the dimensions of the hopper helps reduce operating costs.

A wide variety of additional and adjustable conveyors can be selected based on the need to set the feed. The emptying belt conveyor with the possibility of moving on both sides has an electric control.

The key to the proper and effective mixing of the feed ration consists in the design of stirring screws designed to optimally and evenly ensure proper mixing of the feed dose throughout the mixer. The worm gear reaches up to ¾ height of the hopper, which helps thoroughly mix the feed mixture so that it is always consistent, evenly and in the best quality ready to be fed to the feeding trough or corridor. The worm gear is reinforced both in the lower and upper parts, thus being protected from damage during operation, even when working with whole bales. The worm gear design optimizes the feed mixing process (including bales), which improves the efficiency of the mixing process, feed movement and utilization of the entire capacity of the vehicle.

Accessories:

additional and adjustable belt conveyors
electro-hydraulic conveyor control
reversing camera
above standard weight system
stainless steel hem of the worm
LED lighting

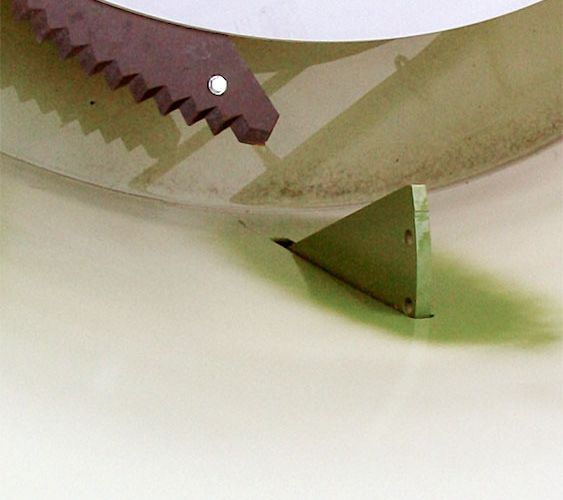

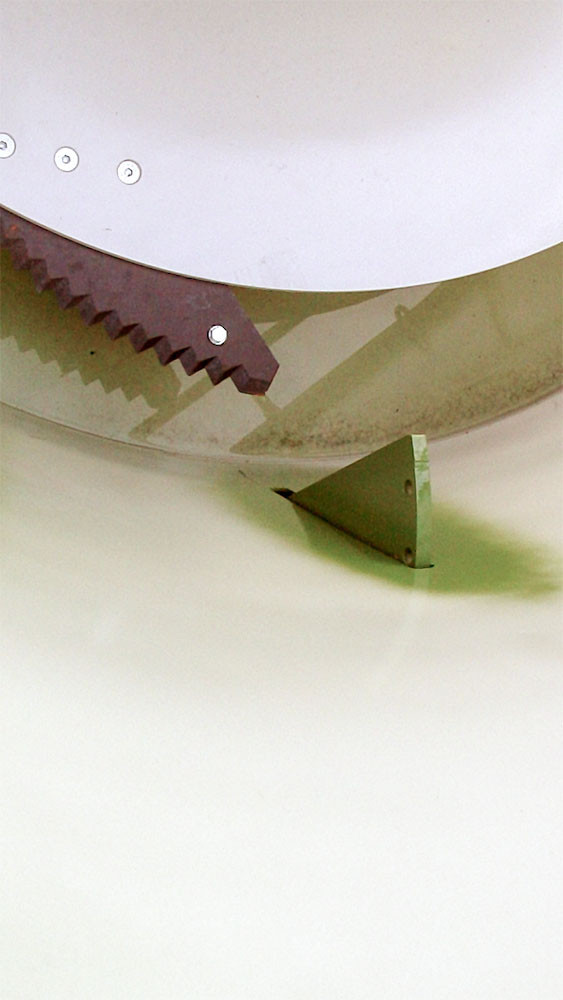

hydraulically controlled counter cutter
and other possible choices from a wide range of accessories

Technical specifications

MISAK V

Type of vehicle	Type	MIŠAK V6	MIŠAK V8	MIŠAK V10	MIŠAK V12	MIŠAK V14	MIŠAK V16
	V	2200	2500	2500	2600	2600	2600
Overall width (mm)	V-V	-	2250	2260	2260	2260	-
	V-M	-	-	2450	2450	2500	-

	V	2270	2250	2500	2750	3020	3270
Overall height (mm)	V-V	-	2400	2750	3050	3340	-
	V-M	-	-	2650	2980	3250	-

	V	5200	5200	5250	5300	5340	5380
Overall length (mm)	V-V	-	5200	5250	5300	5340	-
	V-M	-	-	5250	5300	5340	-

	V	5	6	8	10	12	14
Number of knives per scroll	V-V	-	7	10	12	14	-
	V-M	-	-	10	12	14	-

Min. tractor power (kW)		30	30	30	35	40	50
Curb weight (kg)		3100	3500	3700	4050	4450	4790
Payload (kg)		2100	2800	3500	4200	4900	5600
Height of the discharge window (mm)		810	810	810	810	810	810
Height of the upper edge of the conveyor (mm)		740	740	740	740	740	740
